Overview

This safety switch is normally mounted on the supply duct downstream from the steam distribution nozzle and monitors the humidity level of the supply air. If there is not enough air volume the switch opens turning off the humidifier. This would typically be caused by the blower not running, loose fan belts, or dirty air filters. When the complete system is working perfectly, the steam exiting the steam nozzle would be properly absorbed before that air passes the High Limit Humidistat.

Humidistat On/Off High Limit Duct Mtd.

Specifications

More Information
Manufacturer Barber Coleman
Product Length 6.900
Product Width 6.700
Product Height 3.450
Product Weight 1.125
Dimension Length 7.000000
Dimension Width 5.500000
Dimension Height 3.750000

Documentation

Reviews

Write Your Own Review

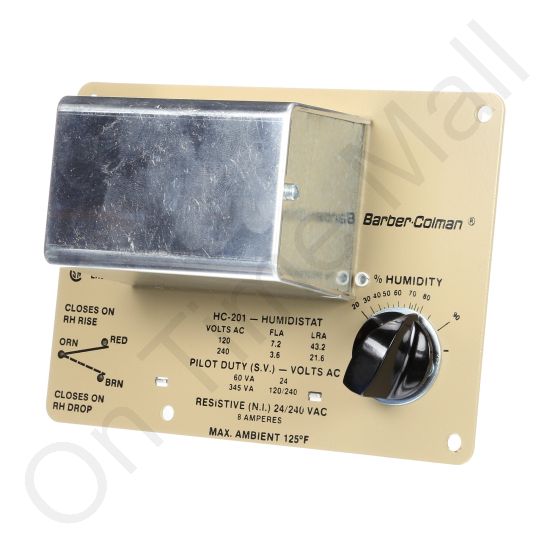

You're reviewing:Barber Coleman HC-201 Duct Mount High Limit Humidistat
