RO-E Pure Water Systems

Search Results for

    Select a diagram to view its parts

    Plumbing
    Plumbing
    Electrical
    Electrical
    Accessories
    Accessories

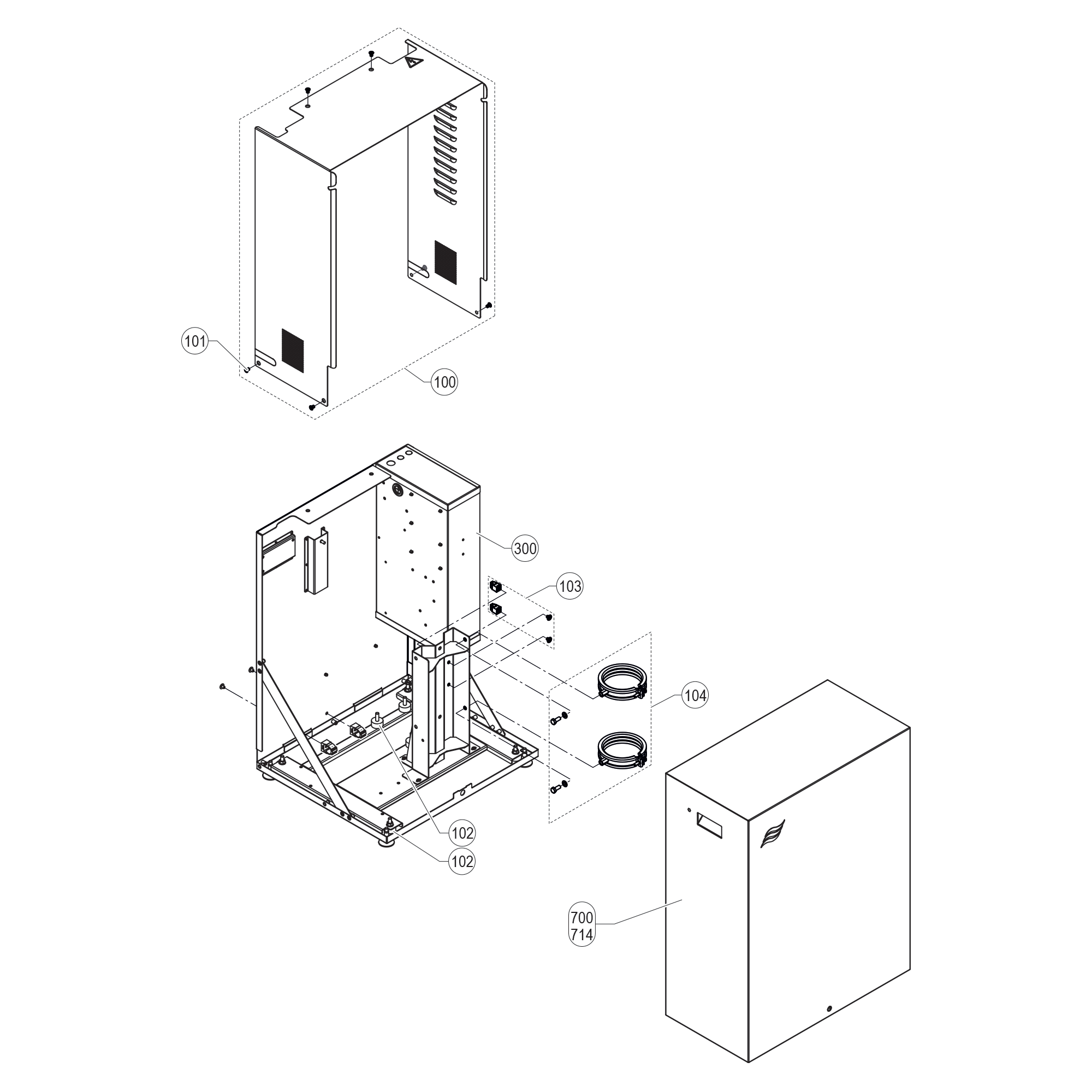

    Housing
    Housing

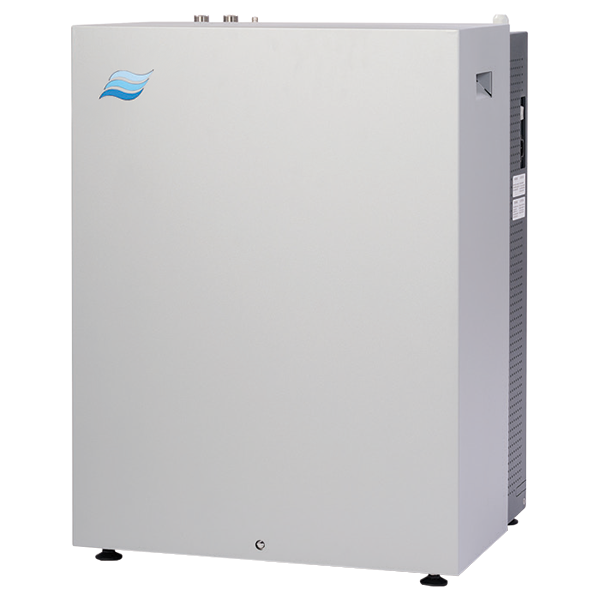

    RO-E Pure Water Systems
    RO-E Pure Water Systems

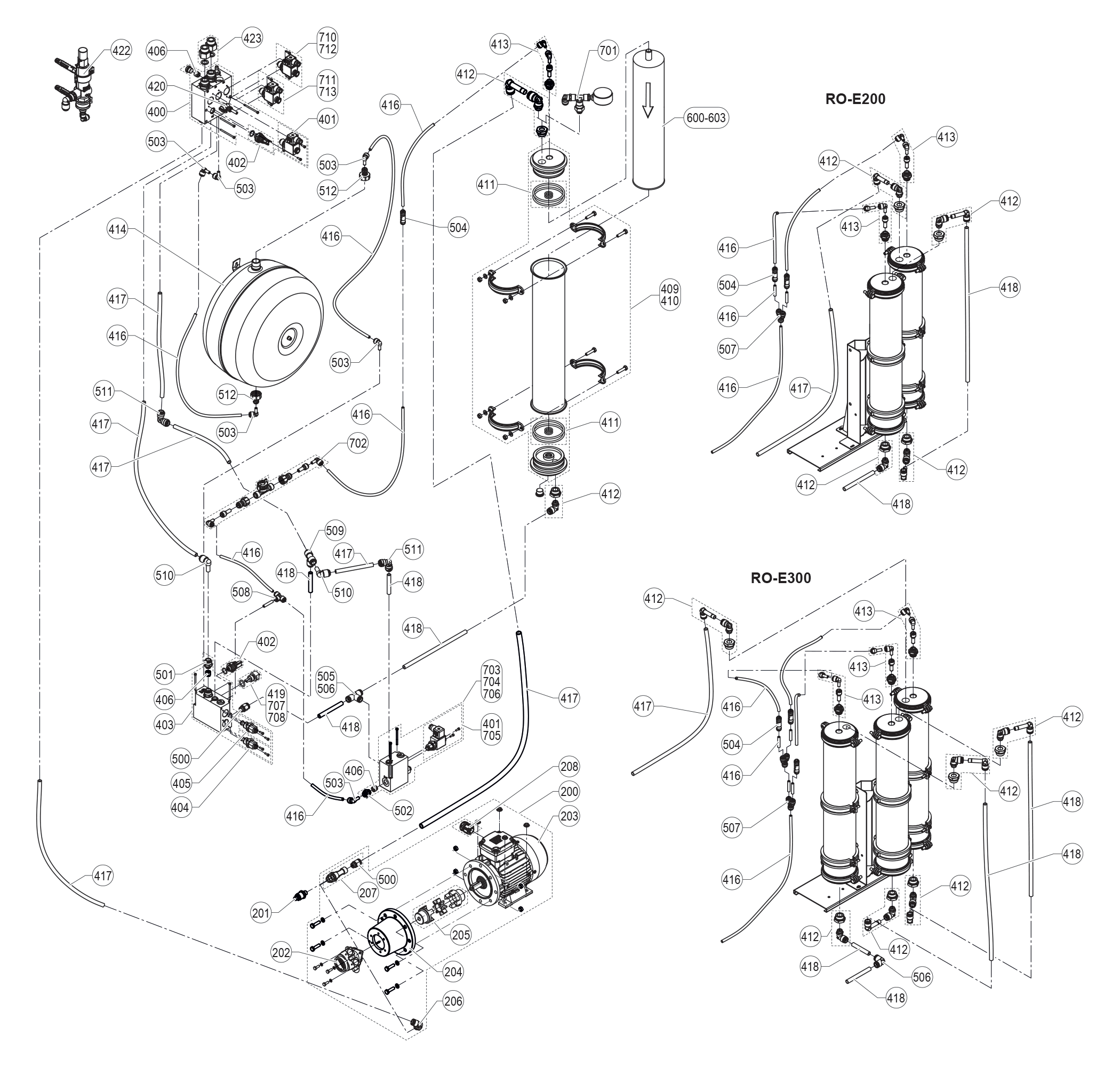

    Plumbing

    Diagram

    Plumbing
    200
    201
    202
    203
    204
    205
    207
    208
    400
    401
    401
    402
    402
    403
    404
    405
    406
    406
    406
    409
    410
    411
    411
    412
    412
    412
    412
    412
    412
    412
    412
    412
    412
    412
    412
    413
    413
    413
    413
    413
    413
    414
    416
    416
    416
    416
    416
    416
    416
    416
    416
    416
    416
    416
    417
    417
    417
    417
    417
    417
    417
    417
    418
    418
    418
    418
    418
    418
    418
    418
    418
    418
    419
    420
    500
    500
    501
    502
    503
    503
    503
    503
    503
    503
    504
    504
    504
    505
    506
    506
    507
    507
    508
    509
    510
    510
    511
    511
    512
    512
    600
    601
    602
    603
    701
    702
    703
    704
    705
    706
    710
    711
    712
    713

    Plumbing

    1. 200
      Motor And Pump Coupling
      Motor And Pump Coupling
      SKU: 2606500
      Without Membrane Pressure Sensor
      $2,616.00
      View Details
    2. 201
      Membrane Pressure Sensor
      Membrane Pressure Sensor
      SKU: 2606507
      $476.80
      View Details
    3. 202
      Rotary Vane Pump 1167 L/H @ 2300 1/Min
      Rotary Vane Pump 1167 L/H @ 2300 1/Min
      SKU: 2579710
      $4,936.54
      View Details
    4. 203
      Pump Motor
      Pump Motor
      SKU: 2579713
      $3,109.97
      View Details
    5. 204
      Adapter Pump
      Adapter Pump
      SKU: 2579717
      $288.14
      View Details
    6. 205
      Boss > 170 L/H
      Boss > 170 L/H
      SKU: 2579719
      $466.99
      View Details
    7. 207
      Pump Connection (OUT)
      Pump Connection (OUT)
      SKU: 2606510
      $169.60
      View Details
    8. 208
      EMC Cable
      EMC Cable
      SKU: 2606511
      $68.80
      View Details
    9. 400
      Entry Valve Block Basic Version
      Entry Valve Block Basic Version
      SKU: 2606515
      Without Y12 And Y13 Options Installed
      $1,715.20
      View Details
    10. 401
      Cartridge Valve 2/2 NC
      Cartridge Valve 2/2 NC
      SKU: 2606516
      To Be Used for Y11 And Y16
      $270.40
      View Details
    11. 402
      Pressure Sensor
      Pressure Sensor
      SKU: NRT050055
      For PS1 And PS2
      $114.26
      View Details
    12. 403
      Logic Block
      Logic Block
      SKU: 2606522
      $1,716.80
      View Details
    13. 404
      Recyclate Throttle (R)
      Recyclate Throttle (R)
      SKU: 2606523
      $282.80
      View Details
    14. 405
      Drain Throttle (D)
      Drain Throttle (D)
      SKU: 2606524
      $376.00
      View Details
    15. 406
      Cartridge Check Valve
      Cartridge Check Valve
      SKU: 2606525
      $110.40
      View Details
    16. 409
      Pressure Cylinder Membrane 21 Inch
      Pressure Cylinder Membrane 21 Inch
      SKU: 2606528
      21" For RO-E 100, 200, 300
      $776.00
      View Details
    17. 410
      Pressure Cylinder Membrane 14 Inch
      Pressure Cylinder Membrane 14 Inch
      SKU: 2606529
      14" For RO-E 40
      $696.00
      View Details
    18. 411
      Pressure Pipe O-Rings Set
      Pressure Pipe O-Rings Set
      SKU: NRT050058
      RO-E 40/100: 1 , RO-E 200: 2 , RO-E 300: 3
      $165.60
      View Details
    19. 412
      Pressure Cylinder Connection Parts (Higher Pressure)
      Pressure Cylinder Connection Parts (Higher Pressure)
      SKU: 2606530
      Higher Pressure
      $147.20
      View Details
    20. 413
      Pressure Cylinder Connection Parts (Lower Pressure)
      Pressure Cylinder Connection Parts (Lower Pressure)
      SKU: 2606531
      Lower Pressure
      $48.00
      View Details
    21. 414
      Internal Pure Water Tank
      Internal Pure Water Tank
      SKU: 2606617
      $1,035.20
      View Details
    22. 416
      Tube D8
      Tube D8
      SKU: 2606539
      $46.40
      View Details
    23. 417
      Tube D12
      Tube D12
      SKU: 2606540
      $83.20
      View Details
    24. 418
      Pipe D12
      Pipe D12
      SKU: 2606541
      $65.60
      View Details
    25. 419
      Conductance Electrode
      Conductance Electrode
      SKU: 1105386
      Also Order 2579734 And 2606542
      $375.91
      View Details
    26. 420
      Sampling Tap
      Sampling Tap
      SKU: 2606947
      $64.00
      View Details
    27. 500
      Straight Male Adapter D12 (Higher Pressure)
      Straight Male Adapter D12 (Higher Pressure)
      SKU: 2606543
      $216.00
      View Details
    28. 501
      Straight Male Adapter D12 (Lower Pressure)
      Straight Male Adapter D12 (Lower Pressure)
      SKU: 2606544
      $100.80
      View Details
    29. 502
      Straight Male Adapter D8 (Lower Pressure)
      Straight Male Adapter D8 (Lower Pressure)
      SKU: 2606545
      $68.80
      View Details
    30. 503
      Stem Elbow D8 (Lower Pressure)
      Stem Elbow D8 (Lower Pressure)
      SKU: 2606546
      $22.40
      View Details
    31. 504
      Non Return Valve
      Non Return Valve
      SKU: NRT050056
      $54.65
      View Details
    32. 505
      Tee Connector D12
      Tee Connector D12
      SKU: 2606547
      $236.80
      View Details
    33. 506
      Equal Elbow D12
      Equal Elbow D12
      SKU: 2606548
      $211.20
      View Details
    34. 507
      2-Way Y-Divider D8
      2-Way Y-Divider D8
      SKU: 2606549
      $116.80
      View Details
    35. 508
      Equal Tee Connector D8
      Equal Tee Connector D8
      SKU: 2606550
      $73.60
      View Details
    36. 509
      Equal Tee Connector D12
      Equal Tee Connector D12
      SKU: 2606551
      $112.00
      View Details
    37. 510
      Stem Elbow D12
      Stem Elbow D12
      SKU: 2606553
      $92.80
      View Details
    38. 511
      Equal Elbow D12
      Equal Elbow D12
      SKU: 2606554
      $110.40
      View Details
    39. 512
      Tap Adapter D8
      Tap Adapter D8
      SKU: 2606618
      $112.40
      View Details
    40. 600
      Membrane Set 1x14 Inch
      Membrane Set 1x14 Inch
      SKU: NRT050001
      $1,076.40
      View Details
    41. 601
      Membrane Set 1x21 Inch
      Membrane Set 1x21 Inch
      SKU: NRT050039
      $1,180.73
      View Details
    42. 602
      Membrane CAir AX4 Small
      Membrane CAir AX4 Small
      SKU: 2606403
      $1,457.60
      View Details
    43. 603
      Membrane CAir AX4 Medium
      Membrane CAir AX4 Medium
      SKU: 2606404
      $1,577.60
      View Details
    44. 701
      Pump Pressure Gauge
      Pump Pressure Gauge
      SKU: 2606556
      $371.20
      View Details
    45. 702
      Volume Flow Measurement
      Volume Flow Measurement
      SKU: 2606557
      $449.60
      View Details
    46. 703
      Membrane Drain
      Membrane Drain
      SKU: 2606558
      $1,705.60
      View Details
    47. 704
      Conductivity Adjustment
      Conductivity Adjustment
      SKU: 2606560
      $1,744.00
      View Details
    48. 705
      Blind Plug Valve NC
      Blind Plug Valve NC
      SKU: 2606561
      $118.40
      View Details
    49. 706
      Membrane Drain And Conductivity Adjustment
      Membrane Drain And Conductivity Adjustment
      SKU: 2606562
      $2,067.20
      View Details
    50. 710
      Drain Valve
      Drain Valve
      SKU: 2606565
      $556.80
      View Details
    51. 711
      Outlet Valve
      Outlet Valve
      SKU: 2606566
      $494.40
      View Details
    52. 712
      Blind Plug Valve NO Closed
      Blind Plug Valve NO Closed
      SKU: 2606568
      $131.20
      View Details
    53. 713
      Blind Plug Valve NO Open
      Blind Plug Valve NO Open
      SKU: 2606569
      $91.20
      View Details

    Plumbing Not In Diagram

    1. Not Shown
      Conductivity And Temperature Measurement
      Conductivity And Temperature Measurement
      SKU: 2606563
      $968.00
      View Details
    2. Not Shown
      Blind Plug For Conductivity Measurement
      Blind Plug For Conductivity Measurement
      SKU: 2606564
      $121.60
      View Details
    3. Not Shown
      Logic Block RO-E+
      Logic Block RO-E+
      SKU: 2606526
      $1,296.00
      View Details
    4. Not Shown
      Cartridge Valve 3/2-Way
      Cartridge Valve 3/2-Way
      SKU: 2606527
      To Be Used As Y15
      $388.80
      View Details
    5. Not Shown
      Cable Y11 To Driver Board
      Cable Y11 To Driver Board
      SKU: 2606517
      Driver Board - Inlet Valve
      $105.60
      View Details
    6. Not Shown
      Cable Y16 To Driver Board
      Cable Y16 To Driver Board
      SKU: 2606518
      Driver Board - Concentrate Valve
      $158.40
      View Details
    7. Not Shown
      Cable PS1 To Driver Board
      Cable PS1 To Driver Board
      SKU: 2606520
      Driver Board - PS1
      $115.20
      View Details
    8. Not Shown
      Cable PS2 To Driver Board
      Cable PS2 To Driver Board
      SKU: 2606521
      Driver Board - PS2
      $118.40
      View Details
    9. Not Shown
      Cable For Conductivity Sensor
      Cable For Conductivity Sensor
      SKU: 2606542
      $121.60
      View Details
    10. Not Shown
      Cable
      Cable
      SKU: 2606512
      $140.80
      View Details

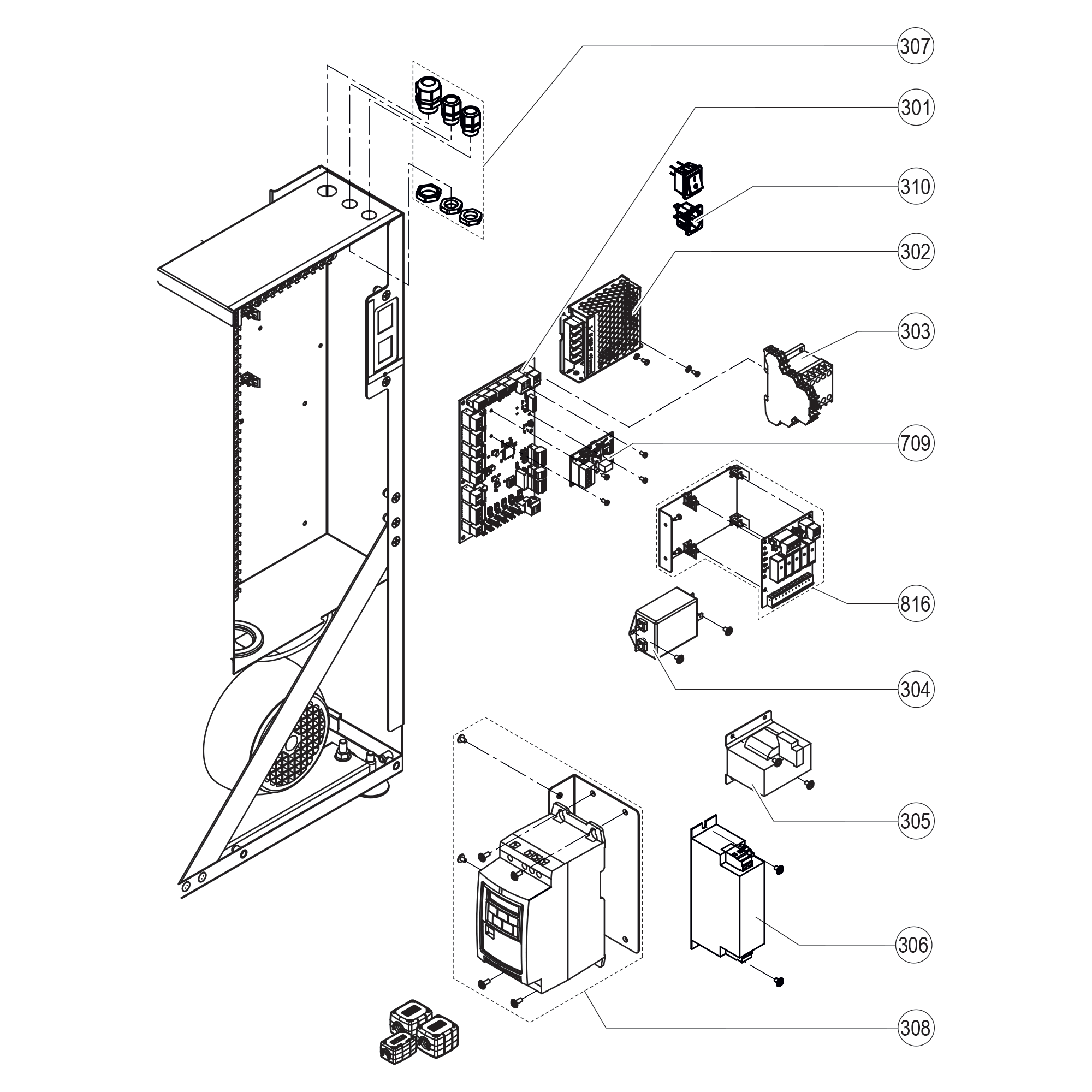

    Electrical

    Diagram

    Electrical
    301
    302
    303
    304
    305
    306
    307
    308
    310
    709
    816

    Electrical

    1. 301
      Driver Board
      Driver Board
      SKU: 2605631
      $813.10
      View Details
    2. 302
      Power Supply
      Power Supply
      SKU: NRT050068
      $753.49
      View Details
    3. 303
      Contactor
      Contactor
      SKU: NRT050072
      $485.21
      View Details
    4. 304
      Line Filter
      Line Filter
      SKU: 2613379
      $160.00
      View Details
    5. 305
      Line Choke
      Line Choke
      SKU: 2613380
      $432.00
      View Details
    6. 306
      EMC Filter
      EMC Filter
      SKU: 2613381
      $41.60
      View Details
    7. 307
      Cable Gland Set
      Cable Gland Set
      SKU: 2606567
      $46.40
      View Details
    8. 308
      Frequency Converter
      Frequency Converter
      SKU: 2607672
      For Motors 0.75kW and IC2 - RO-E(+), 230V Feed
      $1,192.00
      View Details
    9. 308
      Frequency Converter
      Frequency Converter
      SKU: 2607739
      For Motors 0.75kW and IC2 - RO-E(+), 120V Feed
      $1,595.20
      View Details
    10. 310
      Applience Inlet
      Applience Inlet
      SKU: 2614902
      $112.00
      View Details
    11. 709
      Conductivity Board
      Conductivity Board
      SKU: 2579734
      $834.62
      View Details
    12. 816
      RFI Board RO-E
      RFI Board RO-E
      SKU: 2606292
      $520.00
      View Details

    Electrical Not In Diagram

    1. Not Shown
      Cable Set For 230V-FC
      Cable Set For 230V-FC
      SKU: 2606612
      $312.00
      View Details
    2. Not Shown
      Cable Set For 120V-FC-1
      Cable Set For 120V-FC-1
      SKU: 2606614
      $96.00
      View Details
    3. Not Shown
      Cable Opening Plug
      Cable Opening Plug
      SKU: 2606552
      For Closing Open Cable Outlets
      $22.40
      View Details

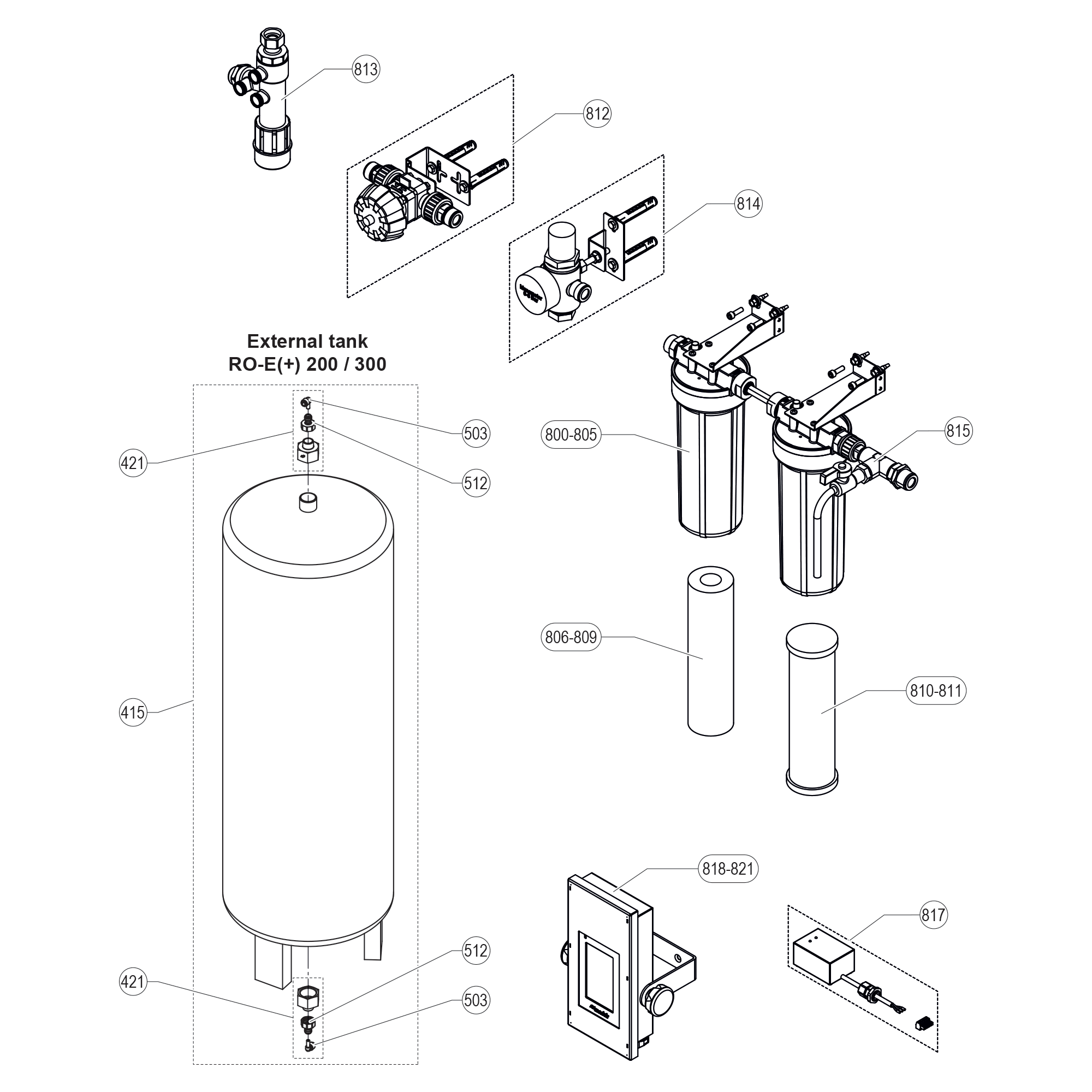

    Accessories

    Diagram

    Accessories
    503
    503
    512
    512
    806
    817
    818
    819
    820
    821

    Accessories

    1. 503
      Stem Elbow D8 (Lower Pressure)
      Stem Elbow D8 (Lower Pressure)
      SKU: 2606546
      $22.40
      View Details
    2. 512
      Tap Adapter D8
      Tap Adapter D8
      SKU: 2606618
      $112.40
      View Details
    3. 806
      Micro-Filter
      Micro-Filter
      SKU: 50013
      $46.37
      View Details
    4. 817
      Leakage Sensor
      Leakage Sensor
      SKU: 2606419
      $1,464.00
      View Details
    5. 818
      External Control Unit RO-E
      External Control Unit RO-E
      SKU: 2606708
      $1,296.00
      View Details
    6. 819
      External Control Unit RO-E (BACnet IP)
      External Control Unit RO-E (BACnet IP)
      SKU: 2614228
      $2,380.80
      View Details
    7. 820
      External Control Unit RO-E (BACnet MS/TP)
      External Control Unit RO-E (BACnet MS/TP)
      SKU: 2614229
      $2,380.80
      View Details
    8. 821
      External Control Unit RO-E (Lonworks)
      External Control Unit RO-E (Lonworks)
      SKU: 2614230
      $2,865.60
      View Details

    Accessories Not In Diagram

    1. Not Shown
      Cable
      Cable
      SKU: 2607030
      $228.80
      View Details
    2. Not Shown
      Hose
      Hose
      SKU: 2607048
      $75.20
      View Details
    3. Not Shown
      Connection Tube D8 RO-E To DL
      Connection Tube D8 RO-E To DL
      SKU: 2608486
      $70.40
      View Details
    4. Not Shown
      Service Kit RO-E Drain Tube
      Service Kit RO-E Drain Tube
      SKU: 2607922
      $139.20
      View Details
    Housing

    Diagram

    Housing
    100
    101
    102
    102
    103
    104
    700

    Housing

    1. 100
      Back Cover
      Back Cover
      SKU: 2606498
      $422.40
      View Details
    2. 101
      Housing Screws
      Housing Screws
      SKU: 2606503
      $30.40
      View Details
    3. 102
      Rubber Buffers
      Rubber Buffers
      SKU: 2606504
      $91.20
      View Details
    4. 103
      Holders
      Holders
      SKU: 2606505
      $30.40
      View Details
    5. 104
      Pressure Cylinder Mounting Kit
      Pressure Cylinder Mounting Kit
      SKU: 2606506
      For One Pressure Cylinder
      $86.40
      View Details
    6. 700
      Cover RO-E
      Cover RO-E
      SKU: 2606555
      $1,267.20
      View Details
    RO-E Pure Water Systems

    Diagram

    RO-E Pure Water Systems
    RO-E Pure Water Systems

    Documentation

    Condair RO-E(+) Pure Water System Operation Manual Condair RO-E(+) Pure Water System Operation Manual
    Condair RO-E(+) Pure Water System Installation Manual Condair RO-E(+) Pure Water System Installation Manual
    Condair RO-E(+) Parts List Condair RO-E(+) Parts List
    Condair Water Treatment Guide Condair Water Treatment Guide

    The Condair RO-E(+) pure water systems produce pure water for humidification systems. The RO-E is intended for isothermal humidification systems and the RO-E+ is for adiabatic humidification systems.

    The RO-E(+) series comes in 4 different capacities: 40, 100, 200, and 300. All models have the same housing and electrical parts, with varying numbers of membrane tanks.

    Browser Not Supported

    You are using Internet Explorer as your browser, which is no longer supported by our website. Because of this, you can view products but not place orders using Internet Explorer on our site.

    Please update your browser to any of the modern browsers listed below or use a different internet browser to place an order on this site.

    If you have any questions or need assistance with placing an order, please contact us at 800-825-2148 or [email protected]

    EdgeEdge
    Edge
    ChromeChrome
    Chrome
    FirefoxFirefox
    Firefox
    OperaOpera
    Opera
    SafariSafari
    Safari
